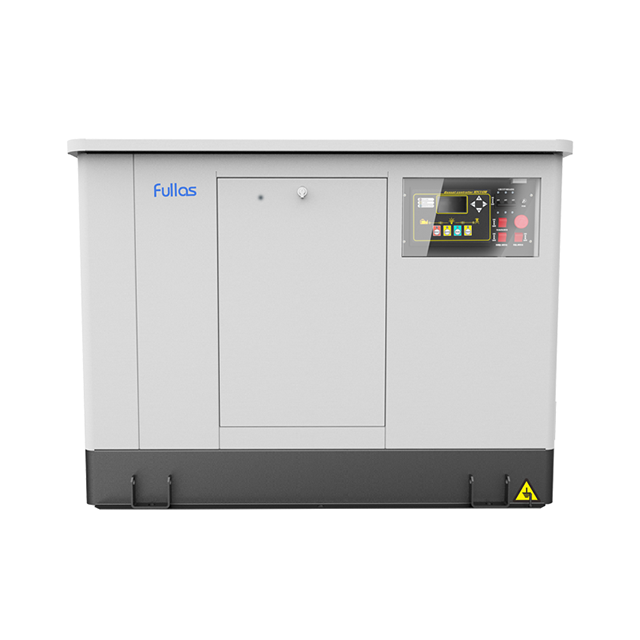

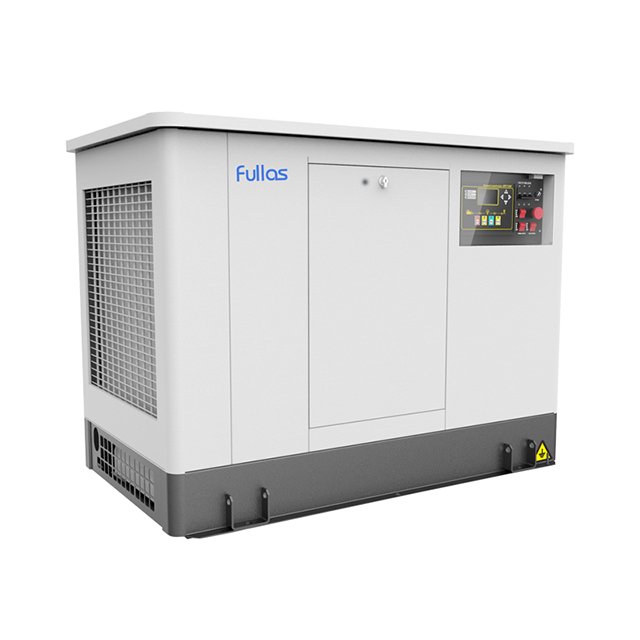

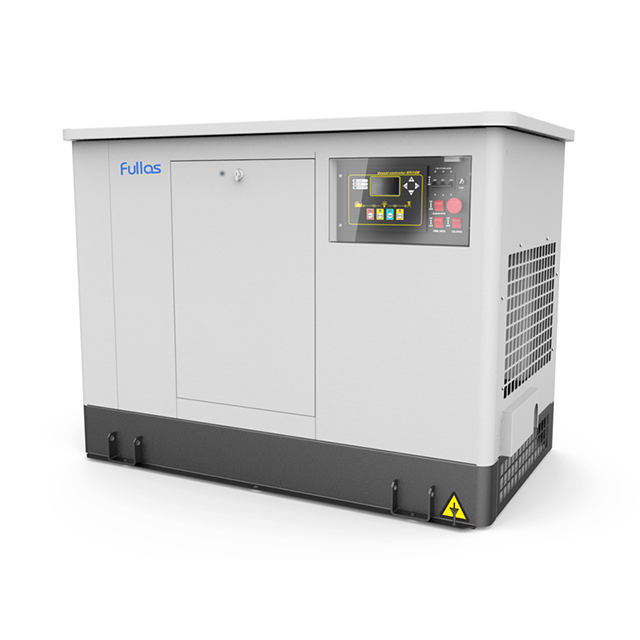

FP25REG-EC 24kw/25.6KW HOME STANDBY 2 IN 1, SUPER SILENT Home Standby LPG/NG GENERATOR
| Model | FP25REG-EC |
| OUTPUT | |
| RATED POWER(LPG) | 25.6KW(32KVA) |
| RATED POWER(NG) | 24KW(30KVA) |
| RATED VOLT (V) | 230/400 |
| RATED CURRENT(LPG) | 46.4 |
| RATED CURRENT(NG) | 43.5 |
| PHASE | THREE |
| ENGINE/ALTERNATOR(RPM) | 3000 |
| POWER FACTOR | 0.8 |
| FREQUENCY (HZ) | 50 |
| ENGINE | |
| ENGINE PART # | LF481 |
| VOLUME (cc) | 1587 |
| COMPRESSION RATIO | 9.5:1 |
| IGNITION SYSTEM | ECM IGNITION |
| ELECTRIC START | YES |
| STARTER | QDY1205 12V 1.2KW |
| FUEL TYPE | LPG/NG |
| BORE&STROKE(mm×mm) | L4-81×77 |
| ASPIRATION TYPE | NATURAL ASPIRATION |
| OIL CAPACITY(L) | 3.5 |
| ROTARY OIL FILTER | YES |
| CYLINDER | CAST IRON |
| SLEEVE | CAST IRON |
| CHARGING METHOD | 14V/90A CHARGER |
| RECOMMEND BATTERY START CURRENT(CCA) | 525A |
| COOLING SYSTEM | LIQUID COOLED |
| OVER TEMP SHUTDOWN | YES |
| LOW OIL PRESSURE SHUTDOWN | YES |
| ALTERNATOR | |
| VOLT.REG.SYSTEM | AVR |
| TYPE | BRUSHLESS |
| POLE | 2 |
| THD @FULL LOAD | ≤ 5% |
| INSULATION | H |
| STATOR WINDING MATERIAL | COPPER |
| ROTOR WINDING MATERIAL | COPPER |
| CONNECTION METHOD | DIRECT COUPLING |
| CONTROLLER | |
| MANUFATURER/PART# | SMARTGEN/HSC940 |
| AUTO/MANUAL/SHUT DOWN | YES |
| GENERATOR VOLATGE DETECTION | YES |
| UTILITY VOLATGE DETECTION | NO |
| LOW OIL PRESSURE PROTECTION | YES |
| LOW FREQUENCY PROTECTION | YES |
| OVER FREQUENCY PROTECTION | YES |
| GENSET | |
| WARRANTY(YEAR) | 2 Years or 1,000 Hours |
| PROTECTION LEVEL | IP 23 |
| EMERGENCY STOP SWITCH | YES |
| FUEL SOLENOID VALVE | DUAL SOLENOID VALVE |
| ENCLOSED MUFFLER | YES |
| GROUNDING SYSTEM | FRAME GROUNDED |
| NOISE AT LOW SPEED,23ft(7M) dB(A) | 65 |
| NOISE AT NORMAL SPEED ,23ft(7M) dB(A) | 73 |
| NG CONSUMPTION100%LOAD ft3/hr(m3/hr) | 10m3/hr |
| LPG CONSUMPTION100%LOAD ft3/hr(kg/hr) | 9.3kg/hr |
| NG PRESSURE RANGE kPa (in.H2O) | 1.3-2.7 (5-11) |
| LPG PRESSURE RANGE kPa (in.H2O) | 1.7-2.7 (7-11) |
| NET DIMENSION(L×W×H) mm | 1500×820×950 |
| PACKAGE DIMENSION(L×W×H) mm | 1580×900×1115 |
| NET WEIGHT(kg) | 550 |
| GROSS WEIGHT(kg) | 600 |
| 20/40 GP CONTAINER LOADING | 12月28日 |
Home Standby Series
Packing
FAQ
| Q1: Can we place a trial order to do some test? | |
| A: Sure, we have tested our products for many times, also you can do more tests. Generally, trial order is also welcomed. We would like more new customers to place trial order. | |
| Q2: Do you accept OEM order? | |
| A: Yes, of course. We provide various OEM services. You can customize your favorite models or design a new model with our professional technological support. Our R&D department and manufacturing department will do together to ensure the quality and on time delivery. | |
| Q3: What is your terms of payment? | |
| A: T/T, L/C at sight, and Western Union are available for our company. | |
| Q4: What is yoUr terms of delivery? | |
| A: EXW, FOB, CFR, CIF, DDU. ...... | |
| Q5: How about your delivery time? | |
| A: 35 days for container order, 3-10 days for sample order. The specific delivery time depends on the items and the quantity of your order. | |
| Q6 Do you offer guarantee for the products? | |
| A: Yes, we offer 1 year warranty to our products. | |
| Q8: How do you make our business long-term and good relationship? | |
| A:1. We keep good quality and competitive price to ensure our customer`s benefit. | |
| 2. We respect every customer as our friend sincerely and hope to do long-term business and make friends with you, no matter where you come from |
Service
We will reply you in 24hours, Sincerely welcome to contact us for more detai
